DCI and Metro Networking

QSFP-DD

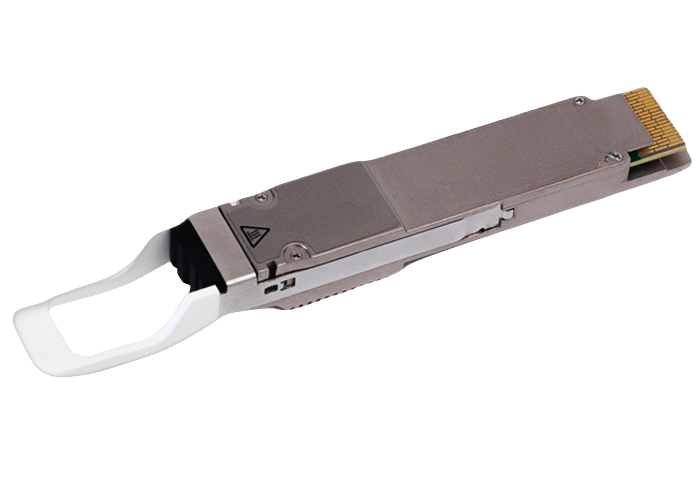

  • 100G OpenZR+ QSFP-DD

    100G OpenZR+ QSFP-DD product family is designed based on dual polarization quadrature phase shift keying (DP-QPSK), supporting extended C-band, polarization diversity coherent detection and advanced electronic link equalization. The product supports 100Gbps transmission speeds in an industry-standard, pluggable QSFP-DD form factor with 7nm DSP.

    Applications

    · Data Center Interconnect (DCI)
    · IPoverDWDM

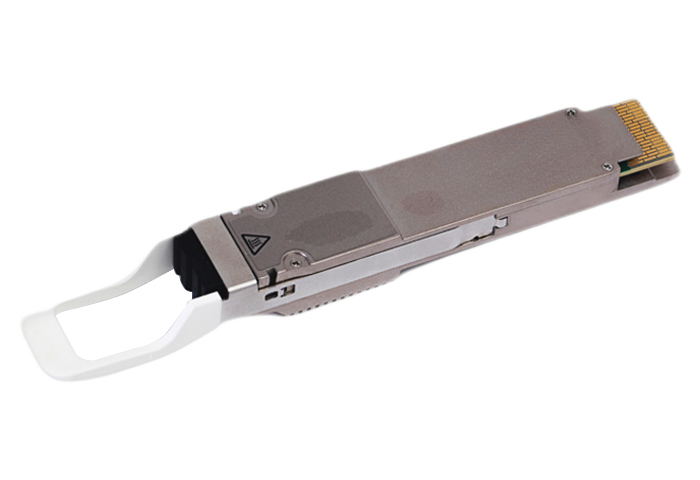

  • 400G ZR+ QSFP-DD

    400G ZR+ QSFP-DD product family is designed based on dual polarization quadrature amplitude modulation (DP-16QAM), supporting extended C-band, polarization diversity coherent detection and advanced electronic link equalization. The product supports 400Gbps transmission speeds in an industry-standard, pluggable QSFP-DD form factor with 7nm DSP.

    Applications

    · Data Center Interconnect (DCI)
    · IPoverDWDM

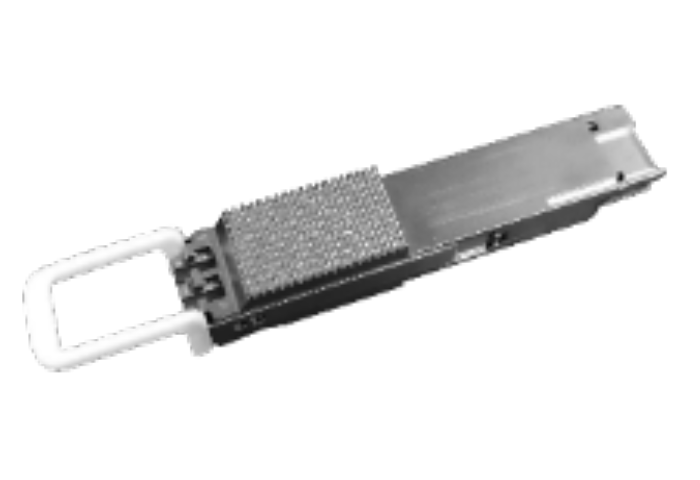

  • 400G OpenZR+ QSFP-DD

    400G OpenZR+ QSFP-DD product family is designed based on dual polarization quadrature amplitude modulation (DP-16QAM), supporting extended C-band, polarization diversity coherent detection and advanced electronic link equalization. The product supports 400Gbps transmission speeds in an industry-standard, pluggable QSFP-DD form factor with 7nm DSP.

    Applications

    · Data Center Interconnect (DCI)
    · IPoverDWDM
    · Metro Networking
    · OTN
  • High Tx Power 400G OpenZR+ QSFP-DD (TOF is optional)

    High Tx Power 400G OpenZR+ QSFP-DD product family is designed based on dual polarization quadrature amplitude modulation (DP-16QAM), supporting extended C-band, polarization diversity coherent detection and advanced electronic link equalization, Tx output power up to 3dBm. The product supports 400Gbps transmission speeds in an industry-standard, pluggable QSFP-DD form factor with 7nm DSP.

    Applications

    · Data Center Interconnect (DCI)
    · Metro
    · OTN
