800G-OSFP112

•

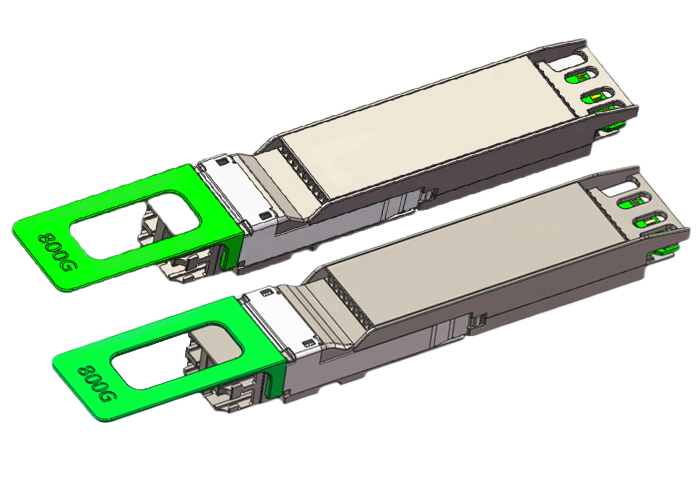

  800G-2xLR4 OSFP112

  800G-2xLR4 OSFP112 based on EML. 8 channels of 100G-PAM4 electrical data, 2 sets of 4 CWDM lanes MUX/DEMUX design,10km maximum reach via single mode fiber, case temperature range of 0℃-70℃, comply with IEE802.3ck and OSFP MSA, and support CMIS5.x.

  Applications

  · Ethernet
  · InfiniBand
•

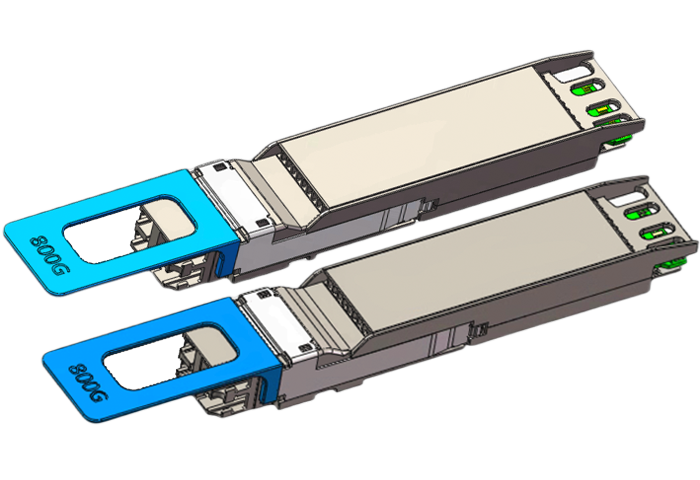

  800G-2xFR4 OSFP112

  800G-2xFR4 OSFP112 based on EML. 8 channels of 100G-PAM4 electrical data, 2 sets of 4 CWDM lanes MUX/DEMUX design, 2km maximum reach via single mode fiber, case temperature range of 0℃-70℃, comply with IEE802.3ck and OSFP MSA, and support CMIS5.x.

  Applications

  · Ethernet
  · InfiniBand
•

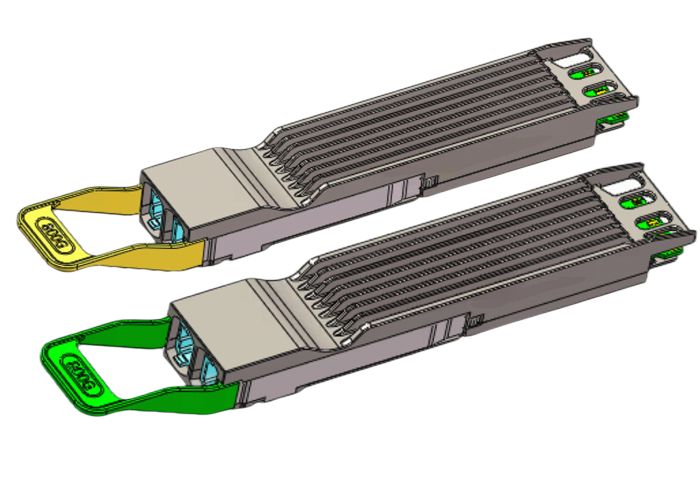

  800G-2xDR4 OSFP112

  800G-2xDR4 OSFP112 based on EML. 8 channels of 100G-PAM4 electrical and optical parallel lanes, dual MPO-12/APC optical connectors, 500m maximum reach via single mode fiber, case temperature range of 0℃-70℃, comply with IEE802.3ck and OSFP MSA, and support CMIS5.x.

  Applications

  · Ethernet
  · InfiniBand
•

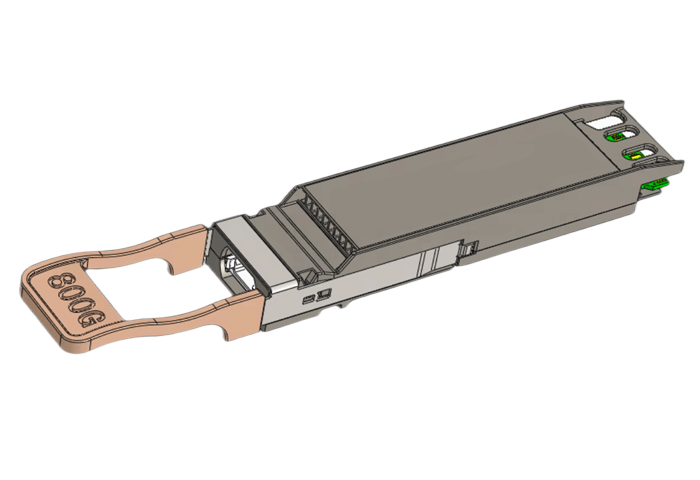

  800G-DR8 OSFP112

  800G-DR8 OSFP112 based on EML. 8 channels of 100G-PAM4 electrical and optical parallel lanes, MPO16/APC optical connector, 500m maximum reach via single mode fiber, case temperature range of 0℃-70℃, comply with IEE802.3ck and OSFP MSA, and support CMIS5.x.

  Applications

  · Ethernet
  · InfiniBand
•

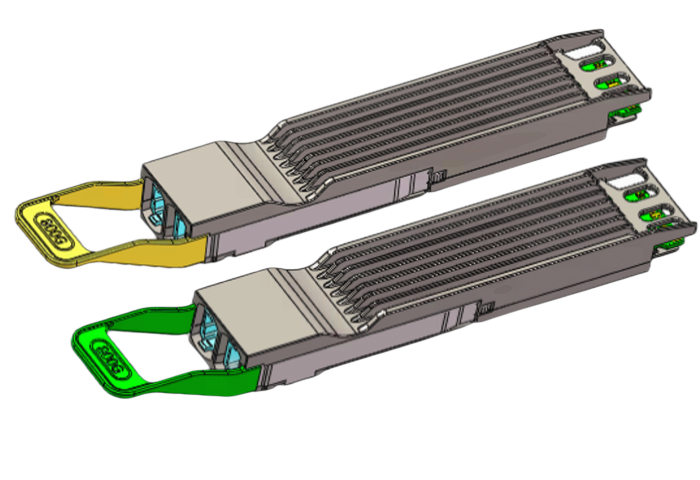

  800G-2xDR4 OSFP112 LPO

  800G-2xDR4 OSFP112 LPO based on 8 channels of 100G-PAM4 electrical and optical parallel lanes, dual MPO-12/APC optical connectors, 500m maximum reach via single mode fiber, case temperature range of 0℃-70℃, comply with IEE802.3ck and OSFP MSA, and support CMIS5.x.

  Applications

  · Ethernet
  · InfiniBand
•

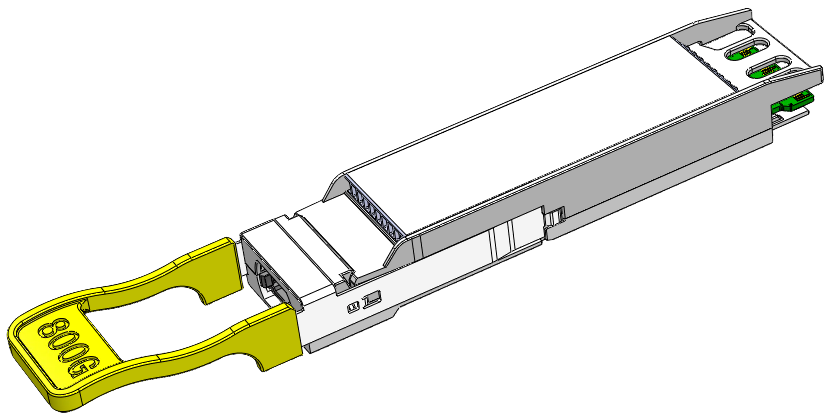

  800G-SR8 OSFP112

  800G-SR8 OSFP112 based on VCSEL. 8 channels of 100G-PAM4 electrical and optical parallel lanes, dual optical port of MPO-12, up to 30m reach via OM3 multimode fiber and 50m reach via OM4 multimode fiber, case temperature range of 0℃-70℃, comply with IEE802.3ck and OSFP MSA, and support CMIS5.x.

  Applications

  · Ethernet
  · InfiniBand
•

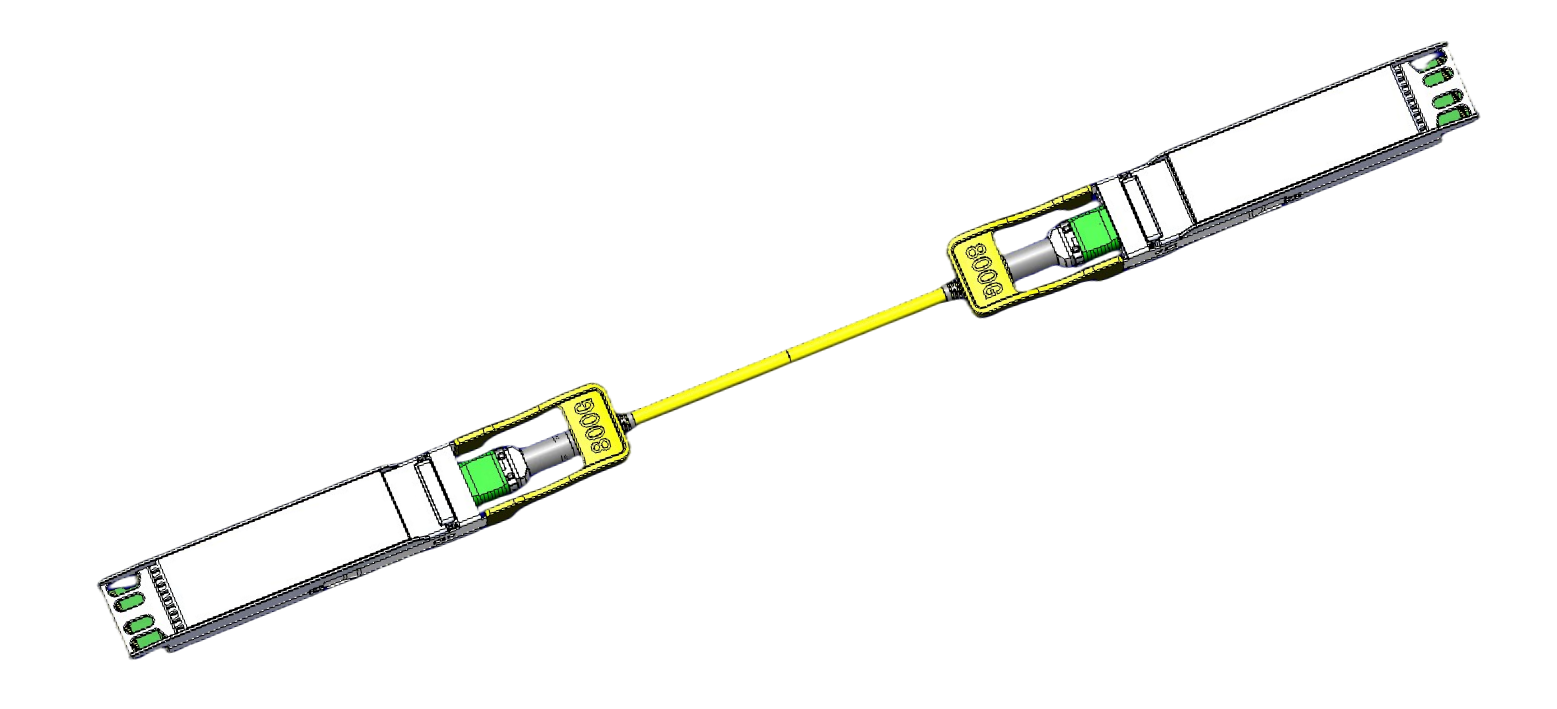

  800G-AOC OSFP112

  800G-AOC OSFP112 Series product feature 8 channels of 100G PAM4 electrical signals and 8 channels of 100G PAM4 optical signals, with a transmission distance of up to 100m over SMF. They have a case temperature range of 0℃-70°C and comply with IEEE 802.3ck and OSFP112 MSA.

  Application

  · Ethernet
  · InfiniBand
