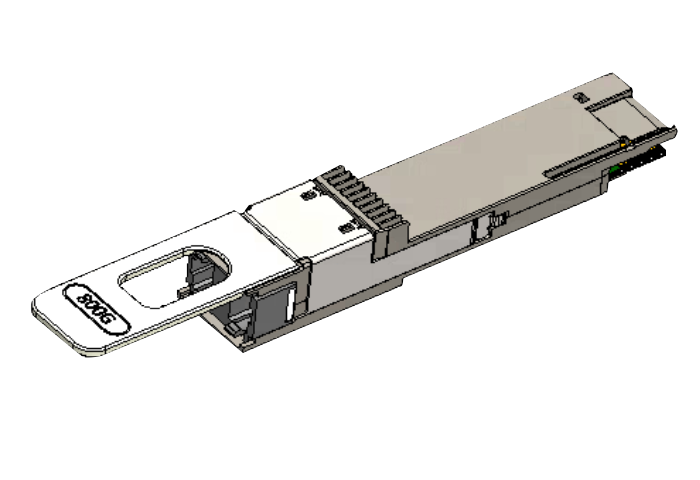

800G-2xLR4 QSFP112-DD based on 8 channels of 100G-PAM4 electrical data, 2 sets of 4 CWDM lanes MUX/DEMUX design,10km maximum reach via single mode fiber, case temperature range of 0℃-70℃, comply with IEE802.3ck and QSFP-DD MSA, and support CMIS5.x.
Applications
· Ethernet
· InfiniBand

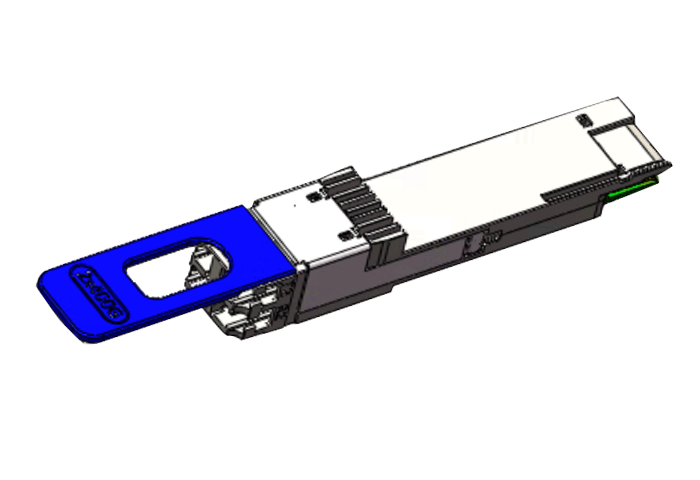

800G-2xFR4 QSFP112-DD
800G-2xFR4 QSFP112-DD based on EML. 8 channels of 100G-PAM4 electrical data, 2 sets of 4 CWDM lanes MUX/DEMUX design, 2km maximum reach via single mode fiber, case temperature range of 0℃-70℃, comply with IEE802.3ck and QSFP-DD MSA, and support CMIS5.x.
Applications
· Ethernet
· InfiniBand

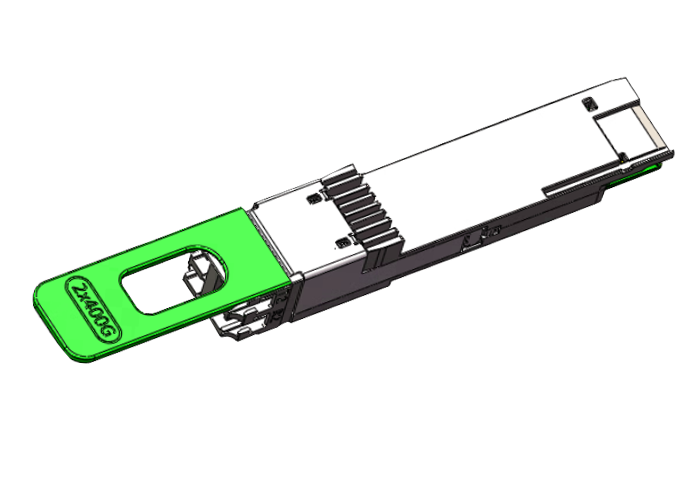

800G-2xDR4 QSFP112-DD
800G-2xDR4 QSFP112-DD based on EML. 8 channels of 100G-PAM4 electrical and optical parallel lanes, dual MPO-12/APC optical connectors, 500m maximum reach via single mode fiber, case temperature range of 0℃-70℃, comply with IEE802.3ck and QSFP-DD MSA, and support CMIS5.x.
Applications
· Ethernet
· InfiniBand

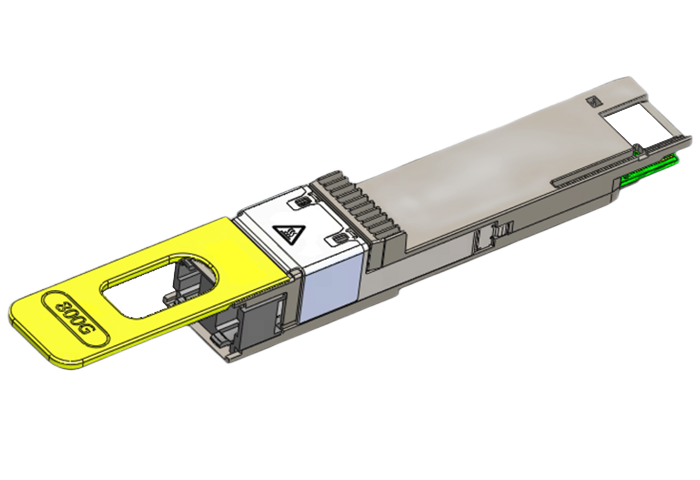

800G-DR8 QSFP112-DD
800G-DR8 QSFP112-DD based on EML ,8 channels of 100G-PAM4 electrical and optical parallel lanes, MPO16/APC optical connector, 500m maximum reach via single mode fiber, case temperature range of 0℃-70℃, comply with IEE802.3ck and QSFP-DD MSA, and support CMIS5.x.
Applications
· Ethernet
· InfiniBand

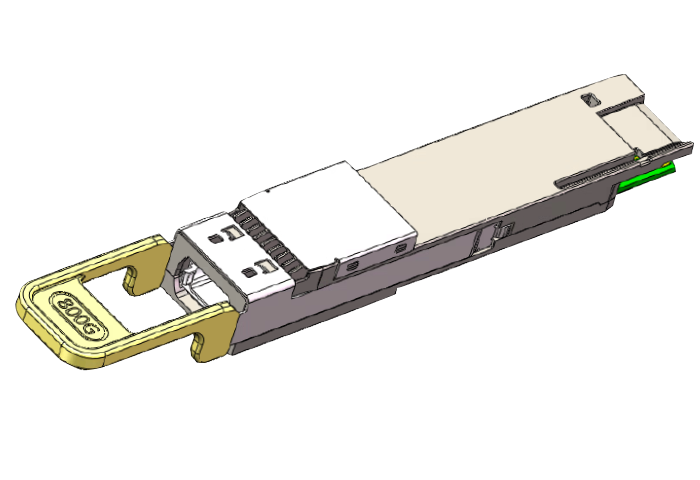

800G-SR8 QSFP112-DD
800G-SR8 QSFP112-DD based on VCSEL. 8 channels of 100G-PAM4 electrical and optical parallel lanes, dual optical port of MPO-12, up to 30m reach via OM3 multimode fiber and 50m reach via OM4 multimode fiber, case temperature range of 0℃-70℃, comply with IEE802.3ck and QSFP-DD MSA, and support CMIS5.x.
Applications
· Ethernet
· InfiniBand
800G-AOC QSFP112-DD
800G QSFP112-DD AOC Series feature 8 channels of 100G PAM4 electrical signals and 8 channels of 100G PAM4 optical signals, with a transmission distance of up to 100m over SMF. They have a case temperature range of 0℃-70°C and comply with IEEE 802.3ck and QSFP112-DD MSA.
