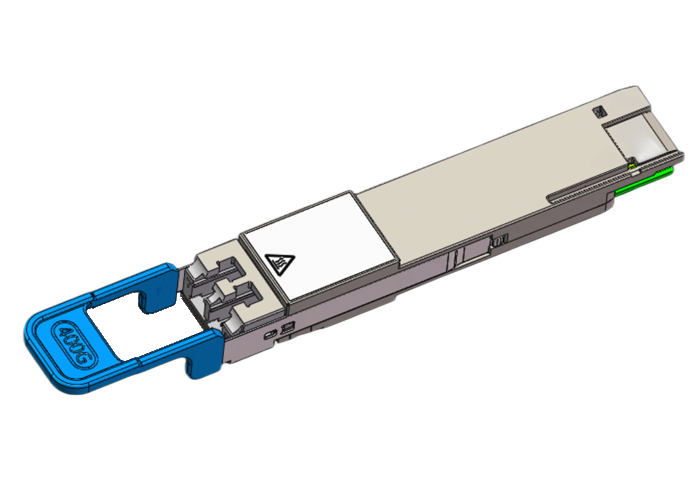

400G-LR4 QSFP56-DD based on EML, 8 channels of 50G-PAM4 electrical and 4 channels of 100G-PAM4 optical parallel lanes, duplex LC connector, 10km maximum reach via single mode fiber, case temperature range of 0℃-70℃, comply with IEE802.3bs and QSFP-DD MSA, and support CMIS.
Applications
· Ethernet
· InfiniBand

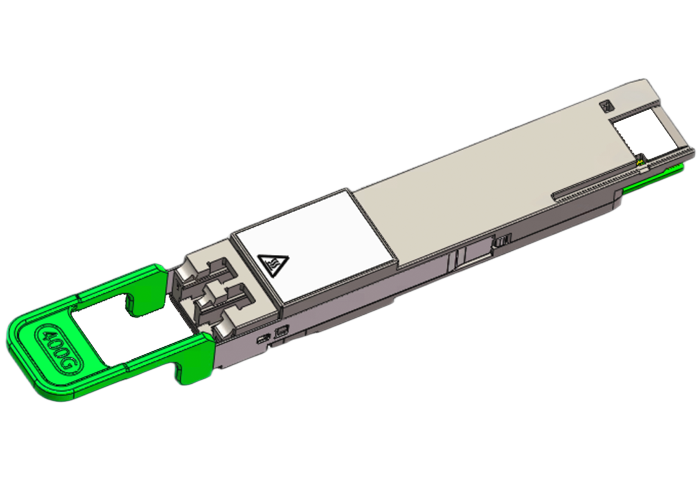

400G-FR4 QSFP56-DD
400G-FR4 QSFP56-DD based on EML, 8 channels of 50G-PAM4 electrical and 4 channels of 100G-PAM4 optical parallel lanes, duplex LC connector, 2km maximum reach via single mode fiber, case temperature range of 0℃-70℃, comply with IEE802.3bs and QSFP-DD MSA, and support CMIS.
Applications
· Ethernet
· InfiniBand

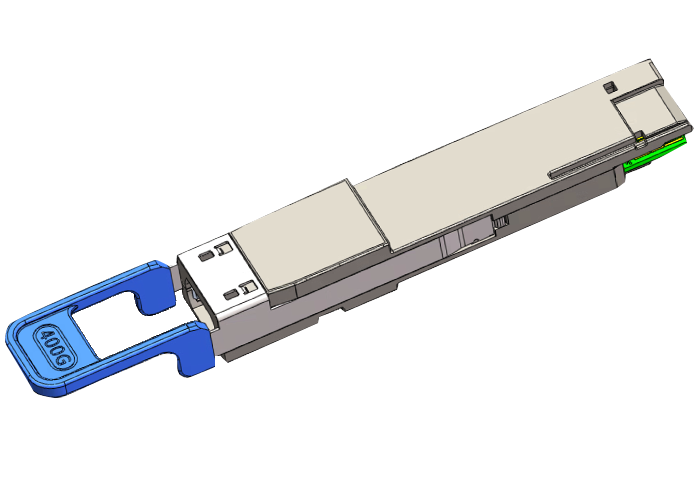

400G-DR4 QSFP56-DD
400G-DR4 QSFP56-DD based on EML, 8 channels of 50G-PAM4 electrical and 4 channels of 100G-PAM4 optical parallel lanes, single optical port of MPO12, 500m maximum reach via single mode fiber, case temperature range of 0℃-70℃, comply with IEE802.3bs and QSFP-DD MSA, and support CMIS.
Applications
· Ethernet
· InfiniBand

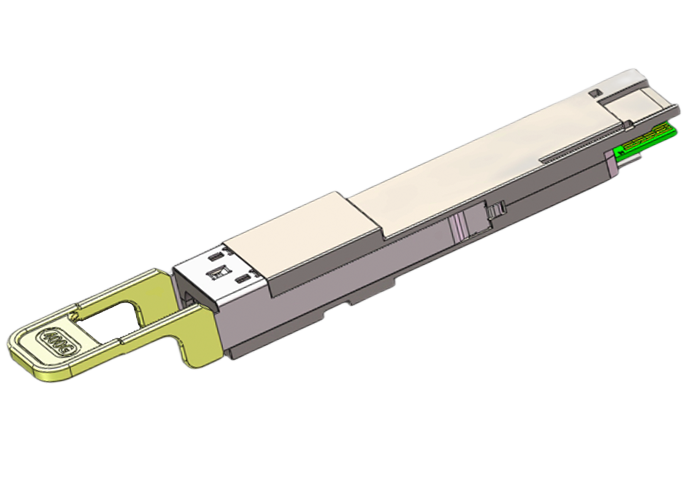

400G-SR4.2 QSFP56-DD
400G-SR4.2 QSFP56-DD based on VCSEL, 8 channels of 50G-PAM4 electrical and optical parallel lanes, single optical port of MPO-12, up to 70m reach via OM3 multimode fiber and 100m reach via OM4 multimode fiber, case temperature range of 0℃-70℃, comply with IEEE 802.3bs and QSFP-DD MSA.
Applications
· Ethernet
· InfiniBand

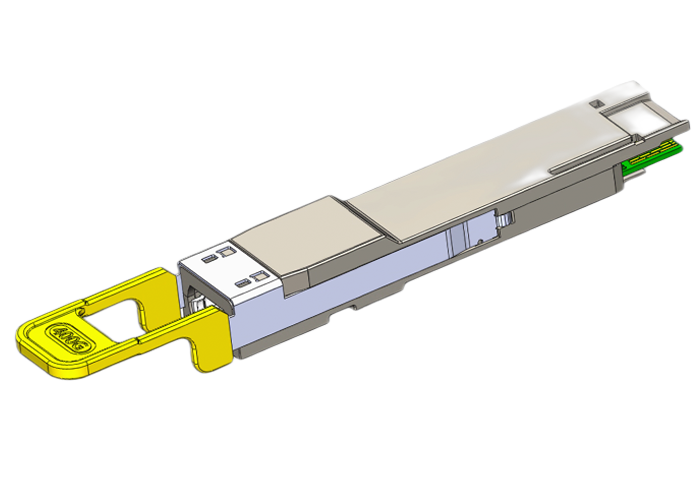

400G-SR8 QSFP56-DD
400G-SR8 QSFP56-DD based on VCSEL, 8 channels of 50G-PAM4 electrical and optical parallel lanes, single optical port of MPO-16, up to 70m reach via OM3 multimode fiber and 100m reach via OM4 multimode fiber, case temperature range of 0℃-70℃, comply with IEEE 802.3bs and QSFP-DD MSA.
Applications
· Ethernet
· InfiniBand

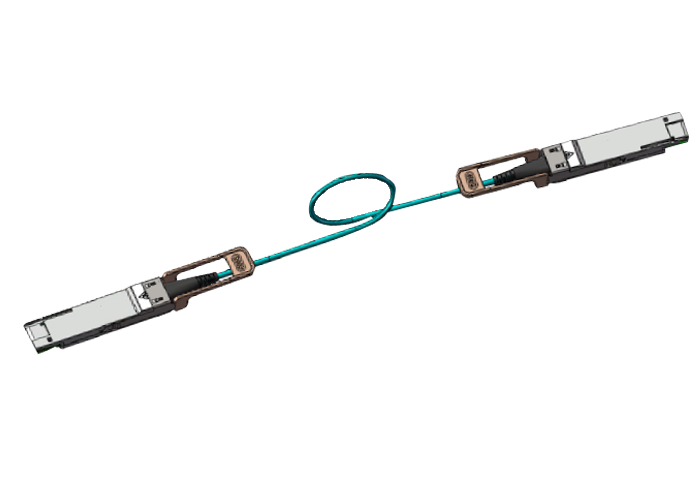

400G-AOC QSFP56-DD
400G-AOC QSFP56-DD Series is based on VCSELs. These products feature eight channels of 50G PAM4 electrical signals and eight channels of 50G PAM4 optical signals, with a transmission distance of up to 100m over OM3 MMF. They have a case temperature range of 0℃-70℃ and comply with IEEE 802.3bs and QSFP-DD MSA.
